DIN 6914 Hexagon Head Bolts with Large Width Across Flats

DIN 6914 Hexagon Head Bolts with Large Width Across Flats

DIN 6914

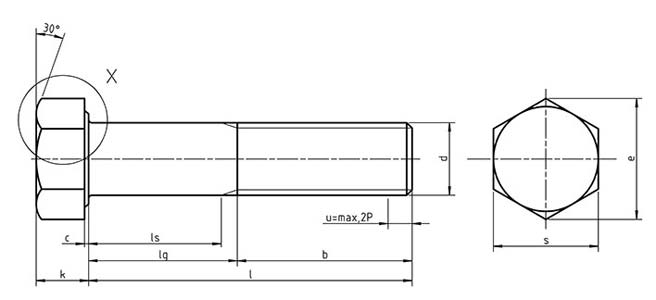

Dimensions of Hexagon Head Bolts with Large Width Across Flats

d1 k s L ≤ 1 1 L ≥ 2 2 e min
M 12 8 22 40 21 45 23 23.91
M 16 10 27 70 26 75 28 29.56
M 20 13 32 85 31 90 33 35.03
M 22 14 36 85 32 90 34 39.55
M 24 15 41 85 34 90 37 45.20
M 27 17 46 95 37 100 39 50.85
M 30 19 50 95 40 100 42 55.37
M 36 23 60 95 48 100 50 66.44
