UNI 5737 Hexagon head bolts with shank

UNI 5737 Hexagon head bolts with shank

uni-5737

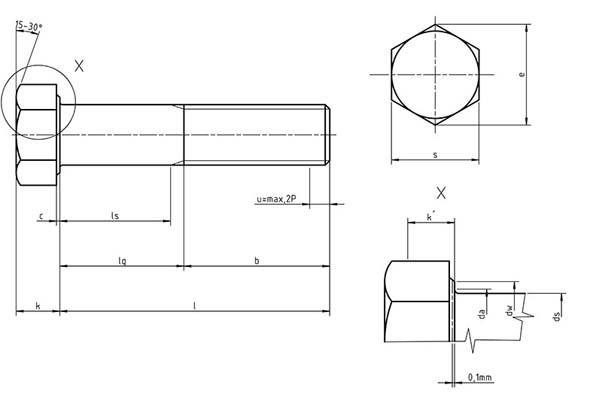

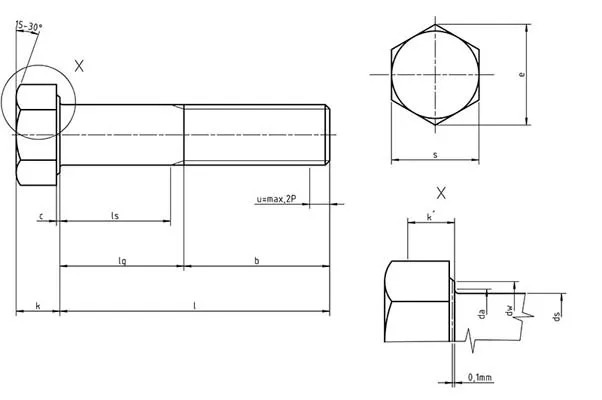

Dimensions for UNI 5737 Hexagon head bolts with shank

P D k V b
l≤120 l>120
0.8 9 4 5 16 -
1 11 5 6 18 -
1.25 14 6 8 22 -
1.5 18 8 10 26 32
1.75 23 10 12 30 36
2 28 12 16 38 44
2.5 35 15 20 46 52
