ISO 4017 Hexagon Head Bolts with threads upto Head

ISO 4017 Hexagon Head Bolts with threads upto Head

ISO 4017 Hexagon Head Bolts with threads upto Head

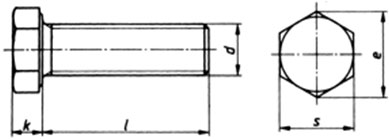

Dimensions of Hexagon Head Bolts with threads upto Head

Dimensions s k a.sub.max
M 2 4 1.4 1.2
M 3 5.5 2 1.5
M 4 7 2.8 2.1
M 5 8 3.5 2.4
M 6 10 4 3
M 7 11 4.8 3
M 8 13 5.3 3.75
M 10 16 6.4 4.5
M 12 18 7.5 5.25
M 14 21 8.8 6
M 16 24 10 6
M 18 27 11.5 7.5
M 20 30 12.5 7.5
M 22 34 14 7.5
M 24 36 15 9
M 27 41 17 9
M 30 46 18.7 10.5
M 33 50 21 10.5
M 36 55 22.5 12
M 39 60 25 12
M 42 65 26 13.5
M 45 70 28 13.5
M 48 75 30 15
M 52 80 33 15
M 56 85 35 16.5
M 64 95 40 18
