Hexagon Socket Countersunk Head Screws BS 2470

ASTM A193 Grade B7 Specifications

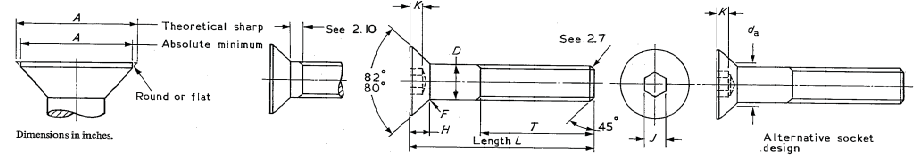

Dimensions of hexagon socket Countersunk head screws with,ISO inch (Unified) threads

Hexagon Socket Countersunk Head Screws BS 2470

Hexagon Socket Countersunk Head Screws BS 2470

Nominal Size D A H J K Fillet radius T
Body diameter Head diameter* Head height Hexagon socket size Key engagement F da Thread length
Max. Min. Theoretical sharp max. Absolute min. Reference. Flushness tolerance Nom. Min. Min. Max. Min.
0 0.0600 0.0568 0.138 0.117 0.046 0.006 0.035 0.025 0.003 0.072 0.500
1 0.0730 0.0695 0.168 0.143 0.057 0.007 0.050 0.031 0.003 0.089 0.625
2 0.0860 0.0822 0.197 0.168 0.066 0.008 0.050 0.038 0.004 0.106 0.625
3 0.0990 0.0949 0.226 0.193 0.075 0.010 1/16 0.044 0.004 0.119 0.625
4 0.1120 0.1075 0.255 0.218 0.085 0.011 1/16 0.055 0.005 0.136 0.750
5 0.1250 0.1202 0.281 0.240 0.093 0.012 5/64 0.061 0.006 0.153 0.750
6 0.1380 0.1329 0.307 0.263 0.100 0.013 5/64 0.066 0.006 0.168 0.750
8 0.1640 0.1585 0.359 0.311 0.116 0.014 3/32 0.076 0.007 0.194 0.875
10 0.1900 0.1840 0.411 0.359 0.131 0.015 1/8 0.087 0.009 0.220 0.875
1/4 0.2500 0.2435 0.531 0.476 0.167 0.016 5/32 0.111 0.009 0.280 1.000
5/16 0.3125 0.3053 0.656 0.589 0.205 0.017 3/16 0.135 0.012 0.342 1.125
3/8 0.3750 0.3678 0.781 0.704 0.241 0.018 7/32 0.159 0.015 0.405 1.250
7/16 0.4375 0.4294 0.844 0.755 0.242 0.018 1/4 0.159 0.018 0.467 1.375
1/2 0.5000 0.4919 0.937 0.857 0.260 0.018 5/16 0.172 0.020 0.530 1.500
5/8 0.6250 0.6163 1.188 1.065 0.335 0.022 3/8 0.220 0.024 0.655 1.750
3/4 0.7500 0.7406 1.438 1.293 0.410 0.024 1/2 0.220 0.030 0.780 2.000
