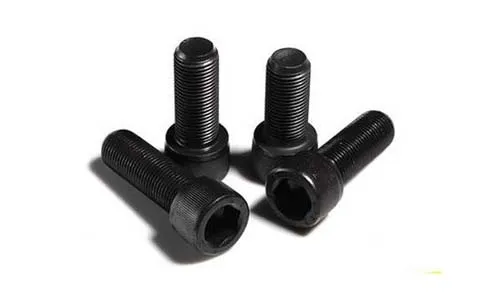

ASTM A193 Grade B7 Socket Head Cap Screws

High Temperature Bolting

ASTM A193 Grade B7 Socket Head Cap Screws

Boltport manufactures ASTM A193 Grade B7 Socket Head Cap Screws as per ASME B18.3, B18.3.1M, DIN 912, DIN 6912, DIN 7984, ISO 4762, etc., with coarse, fine and extra fine threads. Socket head cap screws are available in full range of metric and imperial sizes, lengths and customization. These B7 socket head screws are suitable for high tensile bolting in high-pressure or high-temperature service environment.

Visit Specification page to find information on ASTM A193 Grade B7 chemical composition, applicable heat treatment, and mechanical properties such as tensile strength, yield strength, hardness requirement, product marking, applicable product standards, etc.,

For a quick quote on A193 Grade B7 Socket Head Cap Screws, please contact our sales team at estimation@ferrobend.com

ASTM A193 Grade B7 Socket Head Cap Screws

Socket Head Cap Screws Sizes & Thread Specifications

Metric Sizes M6 to M152
Inch Sizes ΒΌ" to 8"
Metric Threads ISO, ASME
Imperial Threads ASME, BSW, BSF
Thread Standards ISO 68-1, ISO 268, ISO 724, ASME B1.1, ASME B1.13M, BS 84, BS 3643

Socket Head Cap Screws Standards

Fastener Dimensional Standards
Product DIN ISO ASME UNI BS
Imperial Metric Imperial Metric
Socket Head Cap Screws DIN 912 ISO 4762 ASME B18.3 ASME B18.3.1M UNI 5931 BS 2470 BS 4168-1

ASTM A193 Grade B7 Fastener Coatings
