DIN 914 - Boltport Fasteners

Thread d	p	df	dt		e	s			t
Thread d	p	approx.	max	min	min	nominal	min	max	min	min
M1.4	0.3		-	-	0.803	0.7	0.711	0.724	0.6	1.4
M1.6	0.35		-	-	0.803	0.7	0.711	0.724	0.7	1.5
M1.8	0.35		-	-	0.803	0.7	0.711	0.724	0.8	1.6
M2	0.4		-	-	1.003	0.9	0.889	0.902	0.8	1.7
M2.5	0.45		-	-	1.427	1.3	1.27	1.295	1.2	2
M3	0.5		-	-	1.73	1.5	1.52	1.545	1.2	2
M4	0.7		-	-	2.3	2	2.02	2.045	1.5	2.5
M5	0.8		-	-	2.87	2.5	2.52	2.56	2	3
M6	1		1.5	0.9	3.44	3	3.02	3.08	2	3.5
M8	1.25		2	1.4	4.58	4	4.02	4.095	3	5
M10	1.5		2.5	1.9	5.72	5	5.02	5.095	4	6
M12	1.75		3	2.4	6.86	6	6.02	6.095	4.5	8
M14	2		4	3.25	6.86	6	6.02	6.095	5.6	9
M16	2		4	3.25	9.15	8	8.025	8.115	6.4	10
M18	2.5		5	4.25	11.43	10	10.025	10.115	7.2	11
M20	2.5		5	4.25	11.43	10	10.025	10.115	8	12
M22	2.5		6	5.25	13.72	12	12.032	12.142	9	13.5
M24	3		6	5.25	13.72	12	12.032	12.142	10	15

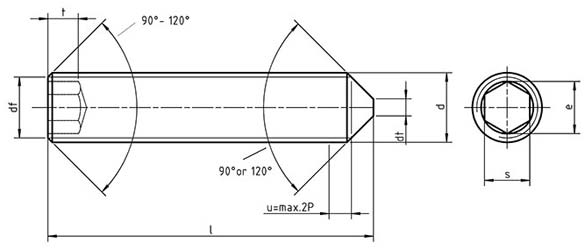

DIN 914 Hexagon socket set screws with cone point
