UNI 6610 Metric thread stud bolts

UNI 6610 Metric thread stud bolts

uni-6610

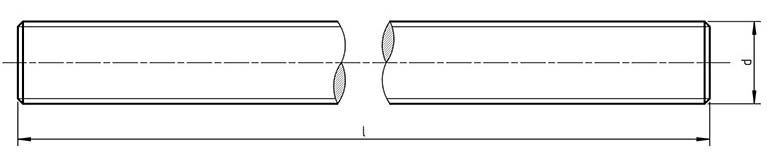

Dimensions for UNI 6610 Metric thread stud bolts

d p L(mm) Weight kg/1000 pcs
M 2 0.4 1000 18.7
M 2.5 0.45 1000 30
M 3 0.5 1000 44
M 3.5 0.6 1000 60
M 4 0.7 1000 78
M 5 0.8 1000 124
M 6 1 1000 177
M 8 1/1.25 1000 319
M 10 1/1.25/1.75 1000 500
M 12 1.5/2 1000 725
M 14 1.5/2 1000 970
M 16 1.5/2 1000 1330
M 18 1.5/2.5 1000 1650
M 20 1.5/2.5 1000 2080
M 22 1.5/2.5 1000 2540
M 24 2/3 1000 3000
M 27 2/3 1000 3850
M 30 2/3.5 1000 4750
M 33 2/3.5 1000 5900
M 36 3/4 1000 6900
M 39 3/4 1000 8200
M 42 3/4.5 1000 9400
M 45 3/4.5 1000 11000
M 48 3/5 1000 12400
M 52 3/5 1000 14700
